Introduction
Walk into any architecture or engineering firm that's been around more than twenty years, and you'll likely find a back room, basement, or off-site storage unit stacked with rolled and flat-filed blueprints. These records document decades of completed work, but they're also fragile, hard to search, and vulnerable to fire, flood, or a simple coffee spill.
Many firms are now moving these archives to digital files that pull up in seconds instead of getting dug out of a drawer.
Running a drawing through a scanner sounds simple enough. In practice, results vary widely depending on scanner type, resolution, file format, and how well the document was prepped beforehand. A rushed scan of a folded, faded, or poorly lit drawing usually produces a file nobody can actually use.
This guide covers how to digitize blueprints step by step: when it makes sense, what you need before starting, the settings that affect quality, and the mistakes that turn a digitization project into a do-over.
Key Takeaways
- Wide-format scanners (36"+) turn paper blueprints into PDF, TIFF, or JPEG files
- Preparation (flattening, removing hardware, sorting) directly determines scan quality
- 300–400 DPI covers most drawings; faded or archival originals often need 600 DPI or more
- Small batches work fine in-house; larger archives usually favor a professional wide-format provider
- Consistent file naming and metadata make a digital archive searchable

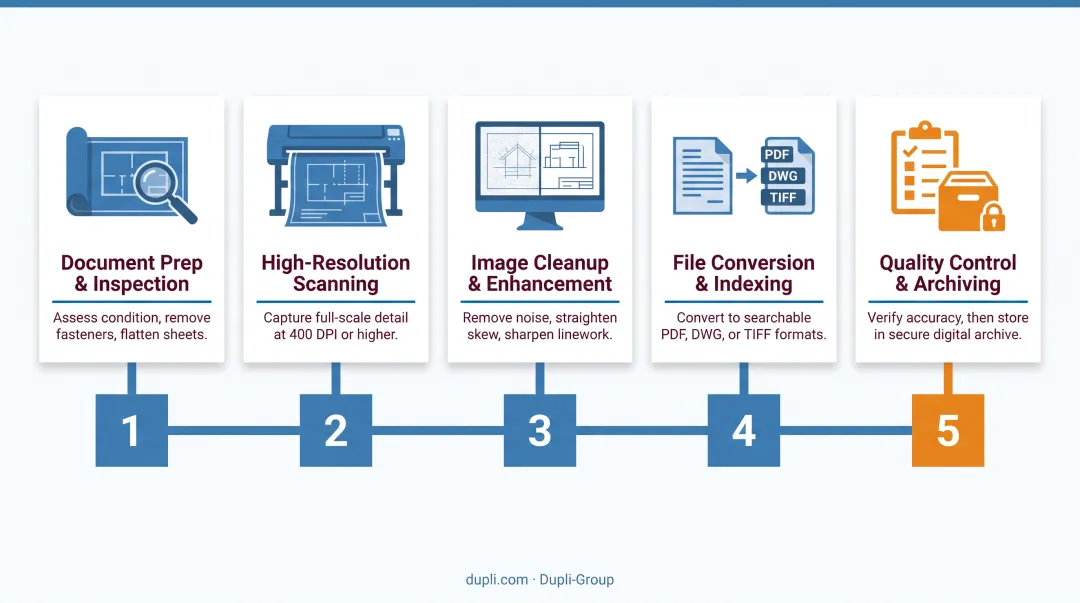

How to Digitize Architectural Drawings: Step-by-Step
Digitizing a blueprint takes five distinct stages. Skip any of them, and the gaps show up in the final file.
Step 1: Sort, Inventory, and Inspect Your Blueprints
Before any drawing touches a scanner, get organized:
- Group by project or discipline: Sort by project name, discipline (architectural, structural, mechanical), or date to keep the batch manageable
- Flag duplicates and outdated revisions: Superseded drawings rarely need scanning twice, so pull them out now
- Inspect for damage: Note tears, creases, water stains, and fading; these originals may need gentler handling or a higher resolution later
- Check retention rules: Confirm your state's record-keeping requirements before discarding anything
New York's architecture licensing rules, for example, require architects to retain sealed plans and related records for at least six years
Step 2: Prepare Documents for Scanning
A blueprint pulled from a flat file or map tube rarely goes straight into a scanner without some work first.
- Remove staples, tape, rubber bands, and binder clips
- Unroll drawings and let them relax flat, using weights or a flattening table for stubborn rolls
- Reinforce small tears with archival tape before scanning, not after
- Smooth heavy creases gently; forcing a tightly curled, brittle sheet flat can crack it
Step 3: Select Scanning Settings and Equipment
Equipment and settings matter as much as the document itself.
- Choose a wide-format scanner that accepts at least 36-inch media (many pro models handle up to 44 inches)
- Set resolution by condition: 300–400 DPI for good sheets; 600 DPI or higher for faded, archival, or heavily detailed drawings
- Prefer grayscale over bi-tonal black-and-white—bi-tonal often drops fine linework and light pencil marks
Step 4: Scan, Enhance, and Quality-Check Each File
Capture is only half the job.
- Verify title blocks, dimension strings, and fine linework are fully legible before moving to the next drawing
- Apply deskewing, contrast correction, and noise removal where needed
- Run OCR so text becomes searchable rather than just a picture of text
- Flag anything blurry, cropped, skewed, or too dark for a rescan
The Library of Congress recommends reviewing image quality and spot-testing OCR by pasting recognized text into a plain file to confirm it reads correctly
Step 5: Index, Convert, and Store the Final Files
A scanned drawing with no label is barely more useful than the paper version it replaced.
- Apply consistent file naming and metadata: project name, drawing number, revision, and date
- Save working copies as searchable PDF for everyday use
- Keep a lossless TIFF master for long-term archiving or future reprinting
- Upload files to secure cloud storage, an encrypted drive, or an internal server, and keep a backup copy stored separately
When Should You Digitize Your Blueprints?
Not every drawing needs scanning today. Digitization pays off fastest when:
- Drawings get pulled regularly for reference, renovation work, or as-built comparisons
- Teams work across multiple job sites and need instant access to the same file
- Physical storage costs or the risk of losing originals have become hard to ignore
Firms holding multi-decade project archives, as-built records, or historical drawings benefit most. Those same documents are the ones most exposed to fire, flood, and slow physical decay.

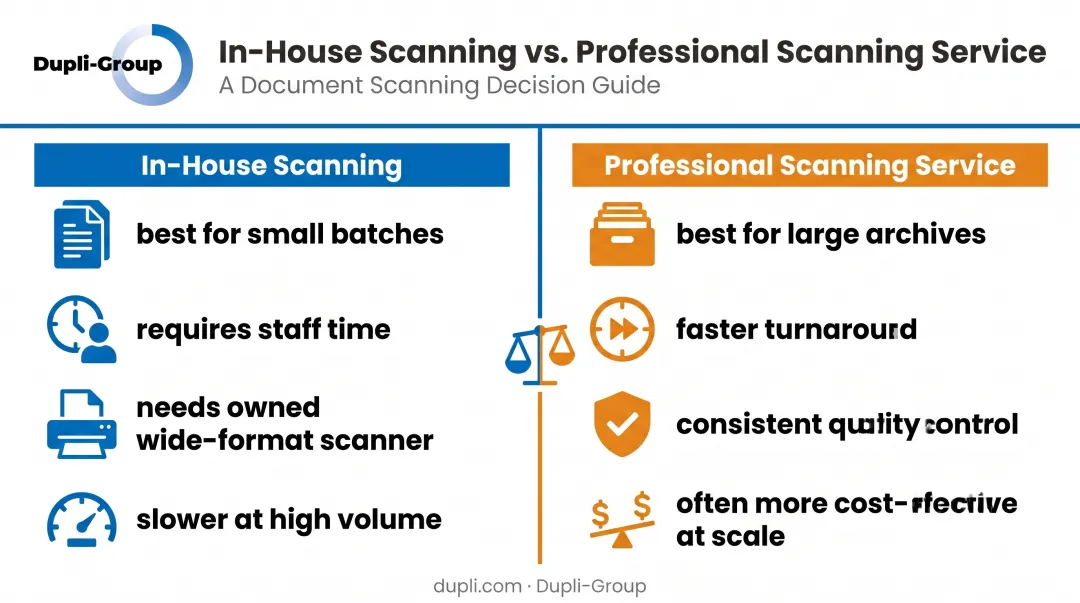

In-House vs. Outsourcing
A handful of drawings can be scanned in-house with a decent wide-format scanner and some patience. Once volume climbs into the hundreds or thousands of sheets, the math shifts. Staff time spent flattening, feeding, and quality-checking drawings adds up fast, often past what a professional scanning service would charge for the same batch.
After Digitizing, You May Still Need Paper
Digitized files solve storage and searchability, but project teams often still need full-scale physical copies for site walkthroughs or client presentations.
Dupli-Group can print accurate, full-size reprints from those files on FSC-certified materials, using the soy-based inks the company has run since 2005.
What You Need Before Digitizing Blueprints
Digitizing blueprints goes smoother when you prep first. Skip the right scanner, document cleanup, or naming plan, and you usually end up with wasted time and files nobody can use later.
Before you start, lock in three things: equipment, document readiness, and a naming/storage plan.
Equipment Requirements
- Wide-format scanner rated for at least 36-inch-wide media
- Capture resolution of 300–600 DPI (or higher for faded or detailed sheets)
- Flatbed or roll-fed feed path based on how fragile or curled the originals are
Document Readiness
Prep the physical set before any sheet hits the scanner:
- Unroll and flatten each drawing; remove staples, clips, and tape
- Sort and inventory the full batch
- Flag sheets that need special handling due to age, tears, or fading
Naming and Storage Plan
Set your file system rules before the first scan. Reorganizing thousands of generically named files later costs far more time than planning upfront.
Decide on:
- File naming conventions
- Metadata fields (project, drawing number, revision, date)
- Storage location (cloud, internal server, or encrypted drive)

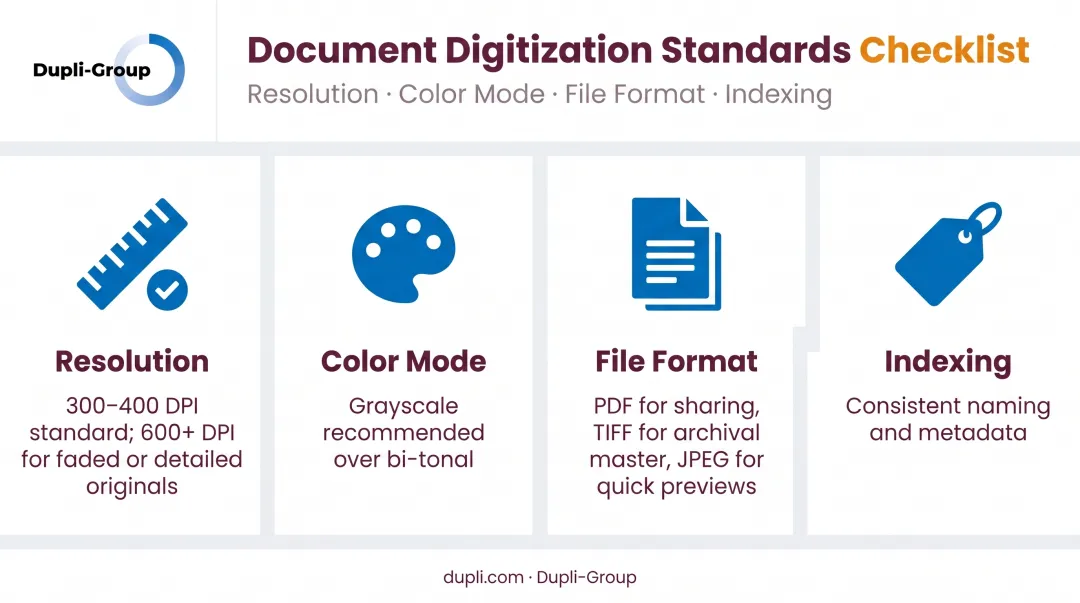

Key Parameters That Affect Digitization Quality
The same drawing, scanned under different settings, can produce wildly different results. Getting these variables right the first time avoids a costly rescan later.
Resolution (DPI)
Resolution determines how much fine detail, such as text, dimension lines, and hatching, actually survives the scan. The Federal Agencies Digitization Guidelines Initiative sets 300 ppi as its baseline target for oversized plans and 400 ppi as a higher-quality target. Faded or heavily detailed originals often need 600 ppi or more to keep fine linework legible.
Color Mode
Grayscale retains shading and detail without the large file sizes of full color. Bi-tonal black-and-white, by contrast, can lose fine linework and light pencil annotations entirely. For most blueprints, grayscale is the safer default.
File Format
| Format | Best Use | Watch Out For |
|---|---|---|
| Daily sharing, searchable text via OCR | Not ideal as the sole long-term master | |
| TIFF | Long-term archival, lossless master files | Larger file sizes |
| JPEG | Quick previews, low-stakes sharing | Compression degrades fine lines over repeated saves |
Indexing and Metadata
None of the above matters if nobody can find the file later. Consistent naming and tagging determine whether a digitized archive is genuinely searchable or just a folder of unlabeled images. Poor indexing erases most of the time savings digitization was supposed to deliver.
Common Mistakes When Scanning Blueprints
Even well-intentioned scanning projects go wrong in predictable ways.
- Poor preparation: Scanning rolled, creased, or dirty drawings distorts the image before enhancement software can help
- Resolution too low: A faded, decades-old blueprint scanned at 200 DPI stays illegible no matter how much contrast you apply later
- No indexing plan: You end up with thousands of generically named files that are nearly impossible to search months later
- Wrong file format: Saving everything as JPEG, then needing lossless TIFF for reprinting or legal archiving, often means rescanning from scratch
Frequently Asked Questions
Can I scan a blueprint to PDF?
Yes. PDF is the most practical format for digitized blueprints since it preserves layout, supports OCR for searchable text, and opens on virtually any device or software.
What resolution is best for scanning architectural drawings?
300–400 DPI covers most drawings in good condition. Faded, aged, or highly detailed sheets usually benefit from 600 DPI or higher to keep fine linework readable.
What's the largest blueprint size that can be scanned?
Professional wide-format scanners typically accept documents 36 to 44 inches wide, with no practical limit on length. That range covers nearly every standard architectural sheet size.
Should I scan blueprints in-house or use a professional service?
A handful of drawings can be handled in-house with the right scanner. Larger archives are usually faster, higher quality, and more cost-effective through a professional wide-format scanning provider.
How much does blueprint scanning typically cost?
Pricing depends on drawing size, quantity, condition, and resolution requirements. Most providers offer custom quotes rather than flat per-page rates.
Can faded or damaged blueprints still be digitized?
Yes. Higher-resolution scanning combined with image enhancement—contrast correction, noise removal, line sharpening—can restore legibility of aged or damaged originals.
